When we look at the tactical landscape for 2026, the strategy for outdoor enthusiasts and home defense specialists revolves around one core concept: versatility through dual-beam technology. Achieving high-performance visibility requires tools that adapt to changing environments. The Olight Pl-X-Tactical-Rail-Mounted-Light represents this strategy, combining raw power with precision engineering to ensure you never lose sight of your target.
Table of Contents
Overview of the Olight PL X

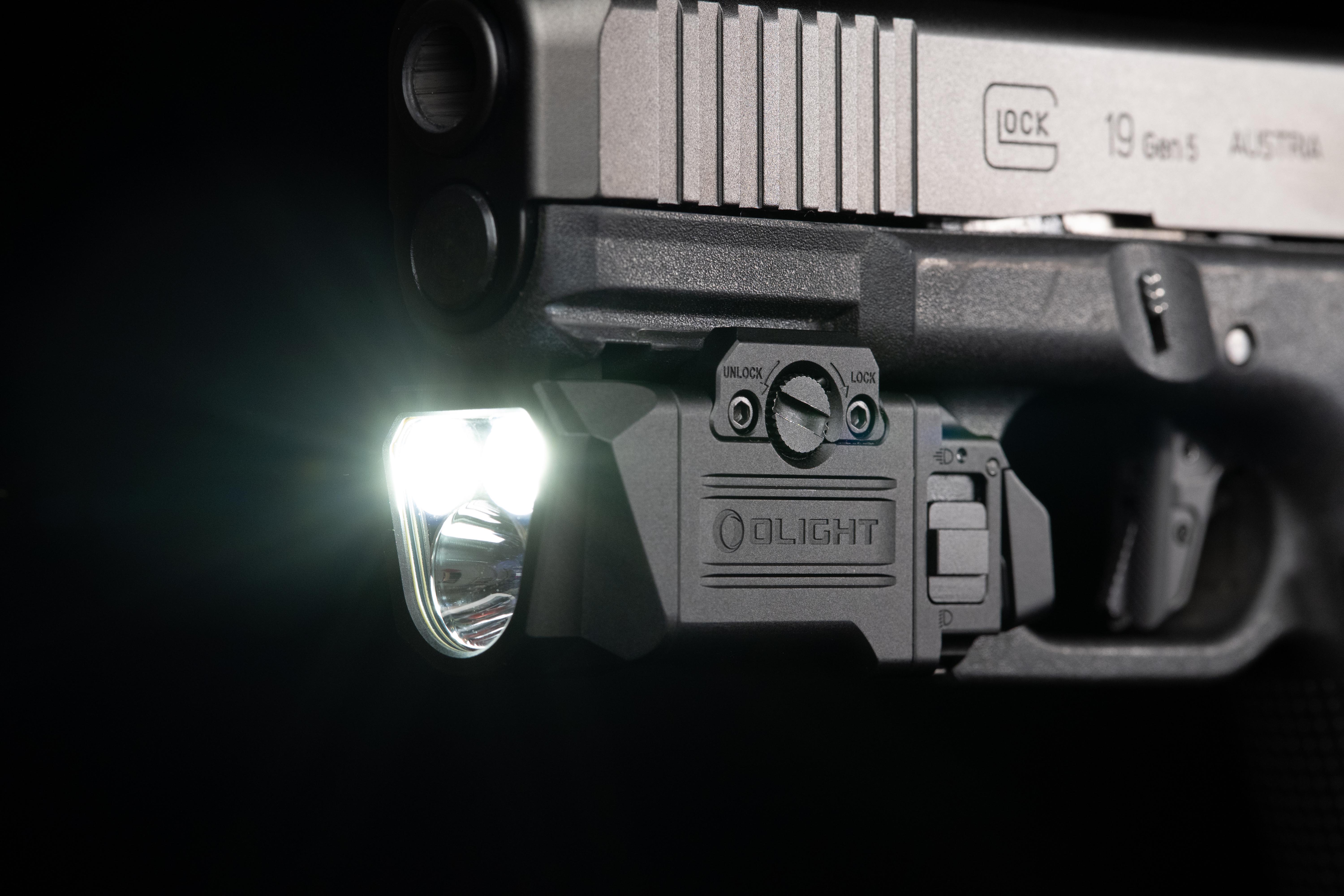

The Olight PL X is a compact tactical rail-mounted light designed for those who require a dependable lighting platform without the bulk of traditional full-sized units. It serves as Olight’s first compact rail light to integrate independently controlled floodlight and spotlight emitters. This design philosophy focuses on the "Dual Beams, One Mission" approach, providing the user with immediate options for situational awareness or long-distance identification. Weighing only 87 grams including the battery, it maintains a low profile that does not significantly alter the balance of your equipment.
Dual Beam Technology: Flood vs. Spot
The standout feature of the PL X is its ability to switch between two distinct lighting modes via a dedicated side toggle. This eliminates the need for multiple lights and simplifies the user's tactical setup.
Floodlight Mode
The floodlight emitter delivers a massive 1,200 lumens. This mode is designed for wide-angle illumination, making it ideal for clearing rooms or navigating dense brush where peripheral vision is critical. It provides a wall of light that saturates the immediate environment.
Spotlight Mode
For long-range needs, the spotlight mode offers 900 lumens with a peak intensity of 22,500 candela. It projects a concentrated beam that reaches up to 300 meters (984 feet). This is essential for identifying objects at a distance or providing a high-intensity "hot spot" for precision tasks.
Technical Specifications and Performance
The Pl-X-Tactical-Rail-Mounted-Light is built on a foundation of high-performance hardware. Below are the specific technical parameters of this unit:
| Feature | Specification |
|---|---|
| Max Performance | 1,200 lumens |
| Max Beam Distance | 300 meters (984 ft) |
| Max Light Intensity | 22,500 candela |
| Body Material | 6061 Aluminum |
| Battery Type | Built-in 3.7V 960 mAh Lithium Battery |
| Charging Type | USB-C |
| IP Rating | IPX7 |
| Weight | 3.07 oz / 87 g |
| Dimensions | 63 mm * 30 mm * 31.5 mm |
| Impact Resistance | 1.5 meters |
Output Levels and Runtime:
- Floodlight (High): 1,200~500~300 lumens; Runtime: 5 + 40 + 4 minutes.
- Floodlight (Low): 300 lumens; Runtime: 115 minutes.
- Spotlight (High): 900~400~200 lumens; Runtime: 5 + 44 + 5 minutes.
- Spotlight (Low): 200 lumens; Runtime: 145 minutes.
- Strobe: Available for both flood (1,200 lumens) and spot (900 lumens).
Mounting System and Rail Compatibility
Compatibility is a key component of the tactical strategy for 2026. The PL X features an adjustable, replaceable, and reversible rail lug system. By sliding or swapping these lugs, the light fits a wide variety of rail types and lengths, including MIL-STD-1913 and Glock rails.
The unit introduces a new locking mechanism that combines a screw-clamp mount with an anti-loosening ratchet system. This ensures that even under heavy recoil or during vigorous outdoor activities, the light remains securely attached. The compression bolt and locking bolt work in tandem to provide a rock-solid interface with the mounting rail.
Durability and Battery Management
Outdoor adventures in the Australian outback or professional law enforcement patrols require gear that can withstand harsh conditions. The PL X is constructed from high-strength 6061 aluminum with a Type III hard-anodized finish. It carries an IPX7 waterproof rating, meaning it can be submerged in 1 meter of water for up to 30 minutes.
Power management is handled through a built-in 960 mAh battery. Olight has integrated a USB-C charging port directly into the unit, allowing for rapid recharging in under two hours. A battery level indicator is included, providing clear visual feedback on the remaining power status. This modern charging solution allows users to power up via vehicle ports, portable power banks, or standard wall adapters, making it highly adaptable for field use.
Practical Applications for 2026
The versatility of the PL X makes it suitable for several high-stakes scenarios:
- Home Defense: The 1,200-lumen floodlight provides the necessary illumination to identify threats in low-light indoor environments while maintaining a compact profile.
- Law Enforcement Patrol: Its lightweight design and long-range spotlight allow officers to use it for both close-quarters interaction and long-distance searching.
- Shooting Range Training: The robust mounting system and simple toggle controls make it a reliable partner for low-light tactical drills.
- Outdoor Adventure: For those exploring remote areas, the dual-beam system offers the flexibility of a high-power flashlight and a precision searchlight in one pocket-sized device.
Final Verdict on the PL X
The Olight Pl-X-Tactical-Rail-Mounted-Light effectively moves away from single-purpose emitters and embraces a dual-beam system, Olight provides a comprehensive lighting platform that covers every range from 0 to 300 meters. The combination of USB-C charging, a secure anti-loosening mount, and a durable aluminum build makes this an essential upgrade for any tactical or outdoor kit.
Whether you are preparing for home defense or gear-intensive range sessions, the PL X offers the performance and reliability required for real-world missions. Its ambidextrous switches and intuitive mode toggle ensure that the right light is always available at the exact moment it is needed.
